Concrete slab construction

construction section 01
A93 Rosenheim-Kiefersfelden

Bavaria, Germany / 08.2017 - 09.2017

In the summer of 2017, ÖBA, which has been active in the German market with its Munich subsidiary since the end of 2016, was awarded a contract for the A93 motorway between Rosenheim and Kiefersfelden: the construction of the approximately-6km-long section between the three-way intersection at Inntal and the Reischenhart junction.

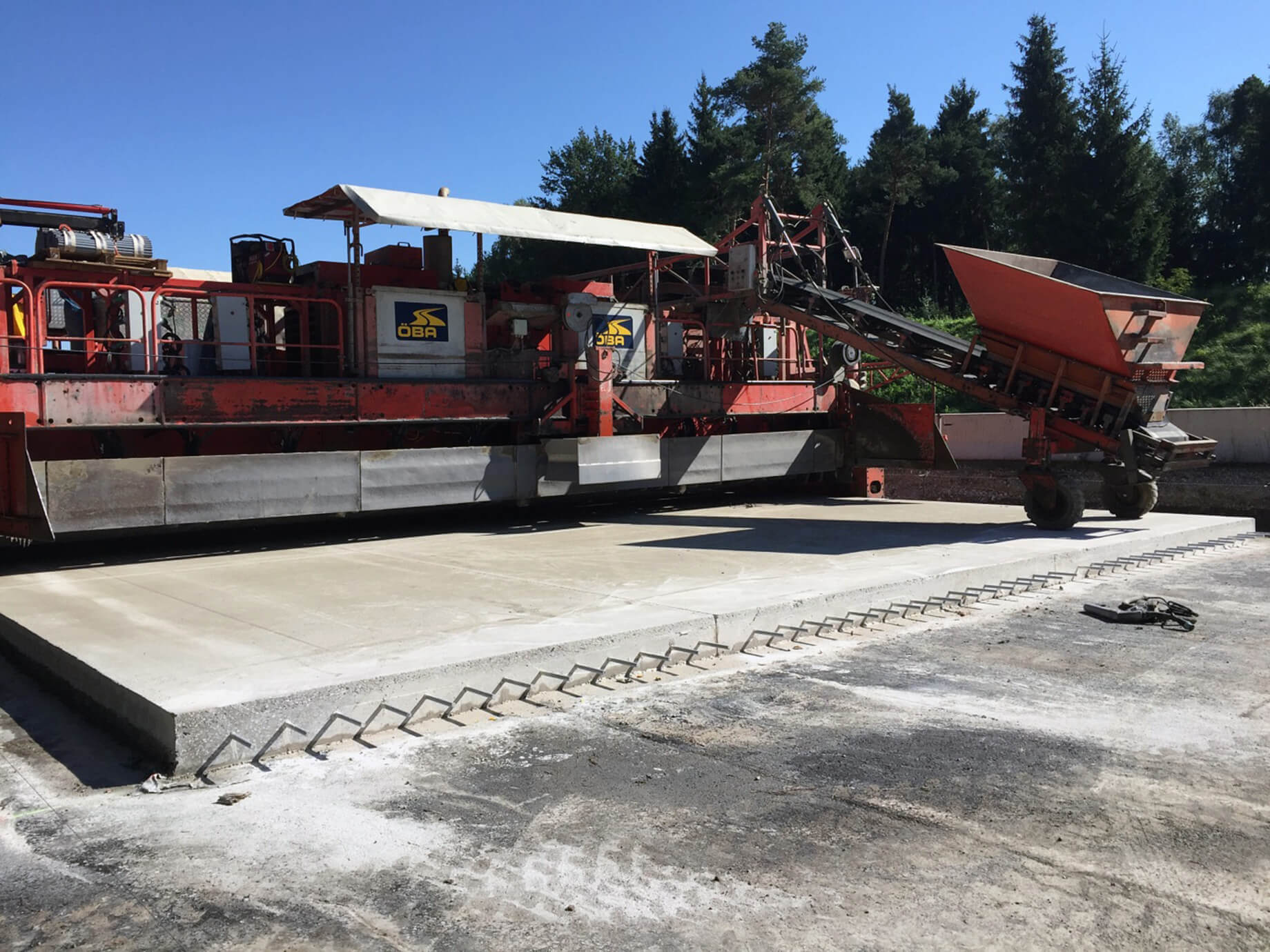

Photo: ÖBA’s bottom concrete paver with a prepared bottom concrete slab with dowels protruding from the longitudinal side, trees on the top right

Facts & Figures

Company

Type

Concrete slab construction

Runtime

08.2017 - 09.2017

Principal
HABAU Hoch- und Tiefbaugesellschaft mbH

A concrete pavement textured with artificial turf.

The new concrete slab, manufactured using slipform construction, extends over roughly 62,500 m². It is 12 to 15 m wide and 26 cm thick. Artificial turf was used to produce its surface structure: a total of around 20,000 running metres of joints were cut and sealed using a cold-sealing compound.

The company’s own construction site mixing equipment, with an average mixing capacity of 200m³/h, provided around 17,500m³ of road concrete for this project.

What ultimately counts in the construction business is successfully completed projects. PORR has many of these.

Photo: ÖBA’s bottom concrete paver with a prepared bottom concrete slab with dowels protruding from the longitudinal side, trees on the top right Photo: Three ÖBA employees assembling the Wirtgen SP500 slipform paver in order to produce the hard shoulder near the three-way intersection of the A93 at Inntal Photo: Freshly concreted surface of the A93 after the joints and the artificial turf surface have been produced, still without road markings, forest on either side
A bird’s eye view of ÖBA’s concrete mixing plant in the foreground, behind it, the A93 construction site with concrete paver train, forest and mountain scenery in the background.
